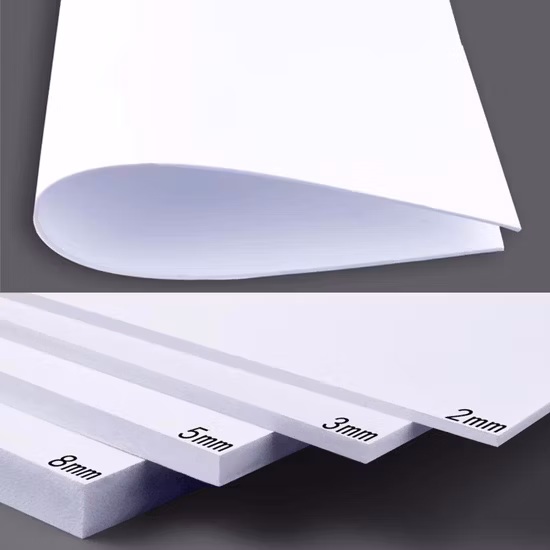

High Density 1220*2440mm PVC Foam Sheet 3

Basic Info.

Model NO.	1220*2440 1-35mm
Payment	LC Tt
MOQ	2000kg
Thickness	1-25mm
Density	0.3-0.8g/cm3
Color	White
Transport Package	Pallet or PP Bag
Specification	915*1830mm 1220*2440mm 1560*3050mm 2050*3050mm
Trademark	YINGCHUANG
Origin	China
HS Code	39211290
Production Capacity	20000PCS/Month

Product Description

Technical Data
Density, g/cm³ISO 1183		0,5
Yield Stress, MPaDIN EN ISO 527		13
Yield Strain, %DIN EN ISO 527		3
Tensile strain at break, %DIN EN ISO 527		25
E-modulus of elasticity in tension, MPaDIN EN ISO 527		750
Impact strength, kJ/m2DIN EN ISO 179		15
Notched impact strength, kJ/m2DIN EN ISO 179		-
Ball indentation hardness, MPaDIN EN ISO 2039-1		-
Shore hardness D ISO 868		48
Coefficient of linear thermal expansion,K-1, DIN 53752		0,8 x 10-4
Thermal conductivity, W/m×KDIN 52612		0,0709
Fire behaviour DIN 4102		B 13
Dielectic strength, kV/mmVDE 0303 - 21		-
Surface resistivity, OhmDIN IEC 60167		>1015
Temperature range, °C		0 bis +60
Physiologically acceptable acc. to BgVV1 and FDA2 (USA)		no
1 Federal Health Institute for the protection of consumers and veterinary medicine2 Food and Drug Administration3 DIN 4102-B1 certificate for sheets from 6 mm up to 19 mm thickness
Handling
Welding	possible
Glueing, glassfibre reinforcing	yes
Lacquering, printing	yes
Warm bending	good

Size	915*1830mm; 1220*2440mm; 1560*3050mm; 2050*3050mm or any size you want
Thickness	1-30mm
Density	0.33-1.0g/cm3
Color	mainly white or other colors
Advantages	1) Resistant to chemicals and corrosion; 2) Homogeneous, glossy and smooth surface; 3) Good deep-drawing qualities; 4) Good for foiling; 5) Easy workability; 6) Low flammability;7) Impact-resistant or increased impact resistance; 8) Weather resista
Application	1.Advertisement: exhibition & display,digital printing,silk screen printing,engraving materials,sign board, etc.2.Furniture:office furniture,cabinet,bath cabinet,etc. 3.Building & decoration: outdoor and indoor decoration; partition board in office & house;4.Industrial Application:thermoforming products,refrigeratory warehouse project,environmental protection.5. Transportation: interior decoration material for buses, trains, metro, steamships and airplanes.

Features: 1. Waterproofing.2. Fire retardant and self-extinguishing.3. Heat preservation. 4. Sound-insulated.5. Insulation.6. Non-corrosion.7. Non-toxic.8. Tough, rigid with the high impact strength.9. Stable color retention.Material:1. Main material is PVC Resin, percentage is 70% 2. Ingredients material is CaCO3, percentage is 15% 3. Foam regulator 10% 4. Other materials percentage is 5%, such as brightener

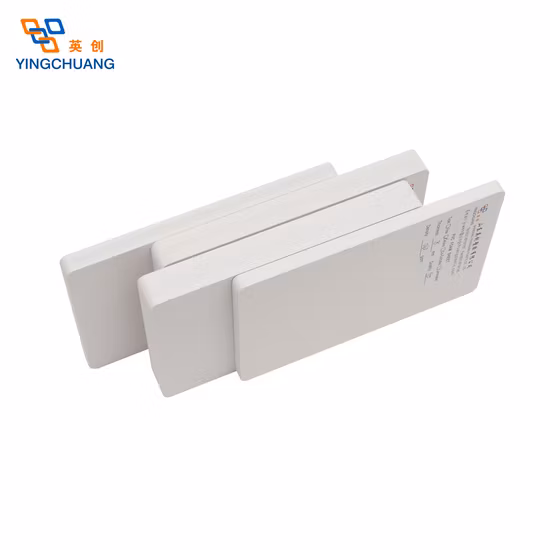

	1-30mm thickness , high quality PVC foam board
Origin	Zibo, China
Introduction	PVC Foam Board is the new man-made material, the main component is PVC, it has the fine chemical stability, anti-corrosive and high intensity, it can be the substitute of wood, it is widely used in the building, advertising.
Thickness	1-30mm
Longth	As your request
Density	0.35-0.80g/cm3
Size	915*1830mm. 1220*2440mm,1560*3050mm,2050*3050mm
Color	white, black, red, blue, yellow etc
Package	Wood pallet outside and plastic bag inside
Delivery	Received the order within 10 days
Payment Terms	T/T 30% after confrim order, 70% againest BL copy.
MOQ	2 ton
Applications	1.Building outdoor wall board, indoor decoration board, partition board in office and house2.Screen printing, flat solvent printing, engraving, billboard and exhibition display.3.Chemical anticorrosion project, special cold project, environmental protection
Features	1. Waterproofing.2. Fire retardant and self-extinguishing.3. Heat preservation. 4. Sound-insulated.5. Insulation.6. Non-corrosion.7. Non-toxic.8. Tough, rigid with the high impact strength.9. Stable color retention.

FAQ
Q1. What is your kinds of packing?
A: Plastic bags or brown paper; pallet; wood case, carton box;.Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% balance against bill of loading copy; or L/C at sight.Q3. How about your delivery time?
A: Generally, it will take 7 to 15 days for 1*20ft, 15-20 days for 1*40ft after receiving your advance payment. Q4. Can you produce according to our samples?
A: Yes, you can send samples to us and we can check your quality and produce as per your samples or technical drawings. Q5. Can I get samples?
A: Yes, small samples are usually free with express service expense at customer's cost.Q6: Is factory visit or inspection acceptable?
A: Yes,factory visit is always welcomed and inspection like third-party inspection okay. Q7: Do you attend any expo?
A: Yes, usually we attend sign expos in Shanghai twice in a year (one in March and the other in September). And we attended Sign Asia expo in IMPACT, THAILAND. In future we will add China Import and Export Fair (Canton Fair) into our exhibition list, also some international expos which will be hold in different countries.Q8: Can you produce lead-free pvc?
A: Yes, both with-lead or lead-free pvc foam board okay with us, depending on customer needs.Q9: How about the after-sale service?
A: If there has any quality problems when you receive our products, show us photos and after discussing we will afford the lost from next order.
Welcome to contact us!
